Complete Catalog
Newwaysmart offers the most extensive and complete array of vacuum pick-up cap products in the industry. NPI Materials is the eclusive North American Distributor. We stock the essential and most popular one and two row pin header caps and metal headcaps for box headers for immediate delivery. We can also provide design support for special factory orders for the entire list below. List updated 12/3/2024.
| Pitch | Description | L | W | H | 1 | W1 | MTL | NPI MPN | AVAIL (STK/FACT ORDER) | Image |
| 1.0 | PUC-2R-1.0-3P2.6/1.1-0.30 | 3.6 | 5 | 2.4 | 1 | 0.3 | NL6T | NWS#1 | STOCK |  |
| 1.0 | PUC-2R-PH1.00-3P3.3/1.0-0.30 | 8 | 5 | 3.3 | 1 | 0.3 | PA9T Black | NWS#2 | FACT. ORDER |  |
| 1.27 | PUC-1R-PF1.27*2.0*1.8-2P2.8/1.00-1.80 | 5 | 4 | 2.8 | 0.8 | 1.8 | PA9T Black | NWS#3 | FACT. ORDER |  |
| 1.27 | PUC-1R-PF1.27*W2.0-2P6.25/0.8-1.95 | 5 | 4.6 | 6.25 | 1 | 1.95 | PA9T Black | NWS#3-1 | FACT. ORDER |  |
| 1.27 | PUC-1R-PF1.27-2P2.8/1.00-2.20 | 5 | 4 | 2.8 | 1 | 2.2 | PA9T Black | NWS#4 | FACT. ORDER |  |
| 1.27 | PUC-1R-PF1.27 & PF2.54 CAP-2P2.8/1.00-2.50 | 5 | 4 | 2.8 | 1 | 2.5 | PA9T Black | NWS#5 | FACT. ORDER |  |
| 1.27 | PUC-1R-PF1.27 & PF2.54 CAP-2P2.8/1.00-2.50 | 4 | 4 | 2.8 | 1 | 2.5 | PA9T Black | NWS#5-1 | FACT. ORDER |  |
| 1.27 | PUC-1R-PH1.27 Side CAP & PF2.54 CAP-2P3.8/1.00-2.45 | 10 | 5.2 | 3.8 | 0.55 | 2.45 | PA9T Black | NWS#6 | FACT. ORDER |  |
| 1.27 | PUC-2R-PH1.27-2P1.9/0.55-2.45 | 10 | 4.5 | 1.9 | 1 | 2.45 | PA9T Black | NWS#6-1 | FACT. ORDER |  |
| 1.27 | PUC-2R-PH1.27&2.54-4P4.0/1.0-0.46 | 6 | 6 | 4 | 0.7 | 0.46 | PA9T Black | NWS#7 | FACT. ORDER |  |
| 1.27 | PUC-2R-BOX1.27-3P3.75/0.7-0.40 | 5 | 6 | 3.75 | 0.7 | 0.4 | NL6T | NWS#8 | FACT. ORDER |  |
| 1.27 | PUC-2R-BOX1.27-3P4.0/0.7-0.40 | 6 | 6.6 | 4 | 1 | 0.4 | NL6T&LCP | NWS#9 | FACT. ORDER |  |
| 1.27 | PUC-1R-1.27-2P3.2/1.0-0.40(0.46) | 6.5 | 3.6 | 3.2 | 1 | 0.4 | NL6T | NWS#10 | STOCK |  |
| 1.27 | PUC-1R-1.27-2P3.2/1.0-0.40(0.46) | 6.5 | 3.6 | 3.2 | 1.08 | 0.46 | NL6T | NWS#10 | STOCK | |
| 1.27 | PUC-1R-PH1.27-2P3.0/1.08-0.40 | 5 | 1.3 | 3 | 1 | 0.4 | PA9T Black | NWS#10-1 | FACT. ORDER |  |
| 1.27 | PUC-1R-PH1.27-No-Keyway-2P3.2/1.0-0.40 | 4 | 3.6 | 3.2 | 0.8 | 0.4 | PA9T Black | NWS#11 | FACT. ORDER |  |
| 1.27 | PUC-1R-PH1.27-Keyway-2P3.2/0.8-0.40 | 4 | 3.6 | 3.2 | 0.8 | 0.4 | PA9T Black | NWS#11-1 | FACT. ORDER |  |
| 1.27 | PUC-2R-PH1.27&2.54-Side-Cap-2*4P3.2/0.8-2.5 | 5.7 | 4.9 | 3.2 | 1 | 2.5 | PA9T | NWS#12 | FACT. ORDER |  |
| 1.27 | 7 | 6 | 1.7 | 1 | 1.5 | NL6T | NWS#13 | FACT. ORDER | COMING | |
| 1.27 | PUC-2R-PH1.27-Side-Cap-2P1.7/1.0-1.5 | 7 | 6 | 1.7 | 0.7 | 1.7 | PA9T Black | NWS#14 | FACT. ORDER |  |
| 1.27 | PUC-2R-PH1.27-No-Keyway-3P3.3/0.7-0.40 | 5 | 3.6 | 3.3 | 0.7 | 0.4 | PA9T Black | NWS#15 | FACT. ORDER |  |
| 1.27 | PUC-2R-PH1.27-Keyway-3P3.3/0.7-0.40 | 5 | 3.6 | 3.3 | 0.7 | 0.4 | PA9T Black | NWS#15-1 | FACT. ORDER |  |
| 1.27 | PUC-2R-PH1.27-3P3.75/0.7-0.40 | 5 | 2.8 | 3.75 | 1.35 | 0.4 | PA9T Black | NWS#16 | FACT. ORDER |  |
| 1.27 | PUC-2R-PH1.27-3P5.37/1.35-0.38~0.46 | 10 | 5.08 | 5.37 | 1.35 | 0.38~0.46 | PA9T Black | NWS#16-1 | FACT. ORDER |  |
| 1.27 | PUC-1R-PH1.27-3P5.37/1.35-0.38~0.46 | 5 | 5 | 5.37 | 1.35 | 0.38~0.46 | PA9T Black | NWS#16-2 | FACT. ORDER |  |
| 1.27 | PUC-1R-PH1.27-3P5.37/1.35-0.38~0.46 | 5 | 5 | 5.37 | 0.7 | 0.38~0.46 | PA9T Black | NWS#16-3 | FACT. ORDER |  |
| 1.27 | PUC-2R-1.27-3P3.75/1.0-0.40 | 3.81 | 4 | 3.75 | 0.7 | 0.4 | PA6T&PA9T Balck | NWS#17 | STOCK |  |
| 1.27 | PUC-2R-PH1.27-3P3.3/0.7-0.40 | 6 | 5 | 3.3 | 1 | 0.4 | PA9T Black | NWS#18 | FACT. ORDER |  |
| 1.27 | PUC-2R-PH1.27-3P3.3/1.0-0.375 | 6 | 5 | 3.3 | 0.7 | 0.375 | PA9T Black | NWS#19 | FACT. ORDER |  |
| 1.27 | PUC-2R-PH1.27-3P3.75/0.7-0.40 | 5 | 4 | 3.75 | 0.85 | 0.4 | PA9T Black | NWS#20 | FACT. ORDER |  |
| 1.27 | PUC-2R-PH1.27-3P2.2/0.85-0.375 | 4.5 | 4.5 | 2.2 | 0.7 | 0.375 | LCP Black | NWS#20-1 | FACT. ORDER |  |
| 1.27 | PUC-2R-PH1.27-3P3.75/0.7-0.40 | 6 | 3.4 | 3.75 | 0.8 | 0.4 | PA9T | NWS#21 | FACT. ORDER |  |
| 2.0 | PUC-1R-2.0-2P3.0/1.0-0.50 | 2 | 2 | 3 | 1 | 0.5 | NL6T | NWS#22 | STOCK |  |
| 2.0 | PUC-1R-2.0-2P4.5/1.0-0.50 | 5 | 5.08 | 4.5 | 1 | 0.5 | PA9T, LCP & PA9T Black Halogen-Free | NWS#23 | FACT. ORDER |  |
| 2.0 | PUC-1R-2.0-2P4.0/1.0-0.50 | 5 | 3.6 | 4 | 0.7 | 0.5 | PA9T Black Halogen-Free | NWS#23-1 | FACT. ORDER |  |
| 2.0 | PUC-1R-2.0-2P4.0/0.7-0.50 | 5 | 5 | 4 | 1 | 0.5 | PA6T Blac | NWS#23-2 | FACT. ORDER |  |
| 2.0 | PUC-2R-PH2.0-3P4.55/1.0-0.50 | 4.6 | 5 | 4.55 | 1 | 0.5 | PA9T Black &PA9T Original Natural Color &LCP | NWS#24 | FACT. ORDER | COMING |
| 2.0 | PUC-2R-PH2.0-3P4.5/1.0-0.50 | 4 | 5 | 4.5 | 1 | 0.5 | PA6T | NWS#24-1 | FACT. ORDER |  |
| 2.0 | PUC-2R-PH2.0-3P4.5/1.0-0.50 | 5 | 4.6 | 4.5 | 1 | 0.5 | PA9T | NWS#24-2 | FACT. ORDER |  |
| 2.0 | PUC-2R-PH2.0-3P4.5/1.0-0.50 | 6.5 | 6.5 | 4.5 | 1 | 0.5 | LCP | NWS#25 | FACT. ORDER | COMING |
| 2.0 | PUC-2R-PH2.0-3P4.5/1.0-0.52 | 6.5 | 6.5 | 4.5 | 1 | 0.52 | PA9T | NWS#25-1 | FACT. ORDER |  |
| 2.0 | PUC-2R-PH2.0-3P5.65/1.0-0.50 | 6.5 | 6.5 | 5.65 | 1 | 0.5 | PA6T | NWS#25-2 | FACT. ORDER |  |
| 2.0 | PUC-2R-PH2.0-Fool-Proof-3P5.65/1.0-0.50 | 6.5 | 6.5 | 5.65 | 1 | 0.5 | PA6T | NWS#25-3 | FACT. ORDER |  |
| 2.0 | PUC-2R-PH2.0-3P4.5/1.0-0.50 | 8.2 | 5.5 | 4.5 | 1 | 0.5 | PA6T | NWS#26 | FACT. ORDER |  |
| 2.0 | PUC-2R-PH2.0-3P3.5/1.0-0.50 | 6 | 4 | 3.5 | 1 | 0.5 | PA9T | NWS#27 | FACT. ORDER |  |
| 2.0 | PUC-2R-PH2.0-3P3.2/1.0-0.50 | 8.2 | 5.5 | 3.2 | 1 | 0.50 | PA9T&LCP Black | NWS#28 | FACT. ORDER |  |
| 2.0 | PUC-2R-PH2.0-3P3.6/1.0-0.50 | 8.2 | 5.5 | 3.6 | 1 | 0.50 | NL6T | NWS#29 | FACT. ORDER | COMING |
| 2.0 | PUC-2R-PH2.0-3P4.5/1.0-0.50 | 6.5 | 5 | 4.5 | 1 | 0.50 | PA9T | NWS#30 | FACT. ORDER |  |
| 2.0 | PUC-2R-PH2.0-Brab-3P4.55/1.0-0.50 | 6.55 | 5 | 4.55 | 1 | 0.50 | PA6T | NWS#30-1 | FACT. ORDER |  |
| 2.0 | PUC-2R-PF2.0-3P4.0/1.0-4.3 | 8 | 6.5 | 4 | 1 | 4.3 | PA9T Black | NWS#31 | FACT. ORDER |  |
| 2.0 | PUC-2R-PH2.0-4P4.0/1.0-0.50 | 6 | 6 | 4 | 1 | 0.50 | PA9T Black | NWS#31-1 | FACT. ORDER |  |
| 2.0 | PUC-2R-PH2.0-3P4.55/1.0-0.46 | 5.6 | 5 | 4.55 | 1 | 0.46 | LCP | NWS#32 | FACT. ORDER |  |
| 2.0 | PUC-2R-2.0-3P4.5/1.0-0.5 | 5.6 | 5 | 4.5 | 1 | 0.50 | NL6T | NWS#33 | STOCK |  |
| 2.0 | PUC-2R-2.0-4P4.55/1.0-0.50 | 5.6 | 5 | 4.55 | 1 | 0.50 | PA9T Black & LCP | NWS#34 | FACT. ORDER |  |
| 2.0 | PUC-2R-2.0-4P4.5/1.0-0.50 | 5.6 | 4 | 4.5 | 1 | 0.50 | PA9T Black | NWS#34-1 | FACT. ORDER |  |
| 2.0 | PUC-2R-PF2.54-2P4.0/1.0-4.50 | 8 | 6.5 | 4 | 1 | 4.50 | PA9T Halogen-Free Black | NWS#35 | FACT. ORDER |  |
| 2.0 | PUC-2R-PF2.54-2P4.0/1.0-5.00 | 8 | 6.5 | 4 | 1 | 5.00 | PA9T Black | NWS#35-1 | FACT. ORDER |  |
| 2.0 | 6 | 6.7 | 4.5 | 1 | 4.00 | NL6T | NWS#36 | FACT. ORDER | COMING | |
| 2.0 | PUC-2R-PF2.54-2P2.55/1.0-4.00 | 6 | 6.65 | 2.55 | 1 | 4.00 | LCP Black | NWS#37 | FACT. ORDER |  |
| 2.0 | PUC-2R-PF2.54-2P2.60/1.0-4.00 | 6 | 6.7 | 2.6 | 1 | 4.00 | LCP Black | NWS#37-1 | FACT. ORDER |  |
| 2.0 | PUC-2R-PF2.00-2P2.6/1.0-4.00 | 8 | 6 | 2.6 | 1 | 4.00 | PA9T Black | NWS#38 | FACT. ORDER |  |
| 2.0 | PUC-2R-BOX2.0-4P5.0/1.0-0.50 | 10 | 6.5 | 5 | 1 | 0.50 | NL6T/NL9T | NWS#39 | FACT. ORDER |  |
| 2.0 | PUC-2R-BOX2.0-Fool-Proof-4P5/1.0-0.50 | 10 | 8.4 | 5 | 1 | 0.50 | NL6T | NWS#40 | FACT. ORDER |  |
| 2.0 | PUC-2R-MOLEX-BOX2.0-Fool-Proof-4P5/1.0-0.50 | 10 | 6.5 | 5 | 1 | 0.50 | NL6T/NL9T | NWS#41 | FACT. ORDER |  |
| 2.0 | PUC-2R-BOX2.0-Fool-Proof-3P4.5/1.0-0.50 | 6.5 | 7.96 | 4.5 | 1 | 0.50 | NL6T/NL9T | NWS#42 | FACT. ORDER |  |
| 2.0 | PUC-2R-PH2.0-Notch-3P4.5/1.0-0.50 | 6.5 | 6.5 | 4.5 | 1 | 0.50 | PA9T | NWS#43 | FACT. ORDER |  |
| 2.0 | PUC-2R-PH2.0-Keyway-3P4.5/1.0-0.50 | 6.5 | 6.5 | 4.5 | 1 | 0.50 | PA9T | NWS#43-1 | FACT. ORDER |  |
| 2.0 | PUC-2R-PH2.0-No-Keyway-3P4.5/1.0-0.50 | 6.5 | 6.5 | 4.5 | 1 | 0.50 | PA9T | NWS#43-2 | FACT. ORDER |  |
| 2.0 | PUC-2R-BOX2.0x5.9-3P3.9/1.0-0.50 | 8 | 7 | 3.9 | 1 | 0.50 | NL9T/LCP | NWS#44 | FACT. ORDER | COMING |
| 2.0 | PUC-2R-BOX2.0x6.3-3P4.5/1.0-0.40 | 8 | 5 | 4.5 | 1 | 0.40 | NL6T/NL9T | NWS#45 | FACT. ORDER |  |
| 2.54 | PUC-1R-PH2.54-2P4.5/1.0-0.64 | 10 | 5.08 | 4.5 | 1 | 0.64 | PA9T Black | NWS#46 | FACT. ORDER |  |
| 2.54 | PUC-1R-PH2.54-2P4.5/1.0-0.64 | 8 | 4 | 4.5 | 1 | 0.64 | PA9T Black | NWS#46-1 | FACT. ORDER |  |
| 2.54 | 10 | 5.08 | 4.5 | 1 | 0.64 | NL6T | NWS#47 | FACT. ORDER |  | |
| 2.54 | PUC-1R-PH2.54-2P6.9/1.0-0.56~0.64 | 10 | 3.5 | 6.9 | 1 | 0.56~0.64 | PA9T Black | NWS#47-1 | FACT. ORDER |  |
| 2.54 | 5 | 4 | 4 | 1 | 0.64 | NL6T | NWS#48 | FACT. ORDER |  | |
| 2.54 | PUC-1R-PH2.54-2P5.0/1.0-0.64 | 5 | 4 | 5 | 1 | 0.64 | LCP Black | NWS#48-1 | FACT. ORDER | COMING |
| 2.54 | PUC-1R-PH2.54-2P6.9/1.0-0.64 | 5.08 | 2.8 | 6.9 | 1 | 0.64 | PA9T White & LCP Black | NWS#49 | FACT. ORDER |  |
| 2.54 | PUC-1R-PH2.54-2P5.0/1.0-0.64 | 5.08 | 2.8 | 5 | 1 | 0.64 | PA9T White | NWS#49-1 | FACT. ORDER |  |
| 2.54 | PUC-1R-2.54-2P6.9/1.0-0.64 | 7 | 5 | 6.9 | 1 | 0.64 | PA9T Black & LCP Black | NWS#50 | FACT. ORDER |  |
| 2.54 | PUC-1R-2.54-2P4.5/1.0-0.64 | 7 | 5 | 4.5 | 1.8 | 0.64 | PA6T Black &PA9T Halogen-Free Black | NWS#51 | STOCK |  |
| 2.54 | PUC-1R-PH2.54-1*3P-1P6.8/1.8-0.64*3 | 7.7 | 4.15 | 6.8 | 1 | 0.64 | PA9T Black | NWS#51-1 | FACT. ORDER |  |
| 2.54 | PUC-1R-2.54-Notch-2P4.5/1.0-0.8 | 7 | 5 | 4.5 | 1 | 0.80 | PA9T | NWS#52 | FACT. ORDER |  |
| 2.54 | 5 | 5 | 2.6 | 1 | 0.64 | NL6T | NWS#53 | FACT. ORDER | COMING | |
| 2.54 | PUC-1R-PH2.54-No-Keyway-2P6.9/1.0-0.64 | 5 | 5 | 6.9 | 1 | 0.64 | PA9T Black | NWS#54 | FACT. ORDER |  |
| 2.54 | PUC-1R-PH2.54-Keyway-2P6.9/1.0-0.64 | 5 | 5 | 6.9 | 1 | 0.64 | PA6T & LCP Black | NWS#54-1 | FACT. ORDER |  |
| 2.54 | PUC-2R-PH2.54-4P6.9/1.0-0.64 | 5.08 | 6.3 | 6.9 | 1 | 0.64 | PA6T & LCP | NWS#55 | FACT. ORDER | COMING |
| 2.54 | PUC-2R-PH2.54-Keyway-4P6.9/1.0-0.64 | 5.08 | 6.3 | 6.9 | 1 | 0.64 | PA6T Halogen-Free&PA6T & LCP | NWS#55-1 | FACT. ORDER |  |
| 2.54 | 10 | 6.25 | 6.9 | 1 | 0.56 | NL6T | NWS#56 | FACT. ORDER | COMING | |
| 2.54 | 10 | 6.25 | 6.9 | 1 | 0.60 | NL6T | NWS#57 | FACT. ORDER | COMING | |
| 2.54 | PUC-2R-PH2.54-No-Keyway-4P6.9/1.0-0.64 | 10 | 6.3 | 6.9 | 1 | 0.64 | PA6T Black & PA6T White & LCP Black | NWS#58 | FACT. ORDER |  |
| 2.54 | PUC-2R-PH2.54-Keyway-4P6.9/1.0-0.64 | 10 | 6.3 | 6.9 | 1 | 0.64 | PA9T Halogen-Free Black & PA9T Black & LCP Black | NWS#58-1 | FACT. ORDER |  |
| 2.54 | PUC-2R-2.54-4P4.5/1.0-0.64 | 10 | 6.3 | 4.5 | 1 | 0.64 | PA6T & PA9T&LCP Black | NWS#59 | STOCK |  |
| 2.54 | PUC-2R-2.54-4P6.9/1.0-0.64 | 10 | 7.5 | 6.9 | 1 | 0.64 | PA6T | NWS#60 | FACT. ORDER | COMING |
| 2.54 | PUC-2R-2.54-6P7.0/1.0-0.64 | 10 | 8.8 | 7 | 1 | 0.64 | PA6T | NWS#60-1 | FACT. ORDER |  |
| 2.54 | PUC-2R-PH2.54-4P5.5/1.0-0.64 | 6 | 6.1 | 5.5 | 1 | 0.64 | PA9T | NWS#61 | FACT. ORDER |  |
| 2.54 | 7 | 6.3 | 4.5 | 1 | 0.64 | NL6T | NWS#62 | FACT. ORDER | COMING | |
| 2.54 | PUC-2R-2.54-3P4.5/1.0-0.60 | 7 | 6.3 | 4.5 | 1 | 0.60 | NL6T | NWS#63 | STOCK |  |
| 2.54 | PUC-2R-2.54-4P6.9/1.0-0.64 | 5 | 5 | 6.9 | 1 | 0.64 | PA6T Black &LCP | NWS#64 | FACT. ORDER |  |
| 2.54 | PUC-2R-PH2.54-Side-Cap-2*4P3.35/1.0-2.5 | 7.5 | 5 | 3.35 | 1 | 2.50 | PA9T Halogen-Free Black & PA6T Black & LCP Black | NWS#65 | FACT. ORDER |  |
| 2.54 | 5 | 5 | 3.2 | 1 | 3.00 | NL6T | NWS#66 | FACT. ORDER | COMING | |
| 2.54 | PUC-1R-5.0-2P-5.0/1.0-5.0 PUC-2R-PF2.54-Notch-2P5.0/1.0-5.0 | 10 | 7.7 | 5 | 1 | 5.00 | PA6T & PA9T Black | NWS#67 | STOCK | COMING |
| 2.54 | PUC-2R-PF2.54-Notch & Fool-Proof-2P5.0/1.0-5.0 | 10 | 7.7 | 5 | 1 | 5.00 | PA9T Black | NWS#67-1 | FACT. ORDER |  |
| 2.54 | PUC-2R-PF2.54-Notch & Fool-Proof-2P5.0/1.0-5.0 | 10 | 10.7 | 5 | 1 | 5.00 | PA9T Black | NWS#67-2 | FACT. ORDER |  |
| 2.54 | PUC-2R-PF2.54-2P4.0/1.0-5.00 | 8 | 6.5 | 3.8 | 0.8 | 5.20 | PA9T Black | NWS#68 | FACT. ORDER |  |
| 2.54 | PUC-2R-PF2.54-2P2.25/0.80-2.50 | 5.1 | 3.4 | 2.25 | 0.8 | 2.50 | PA9T Black | NWS#69 | FACT. ORDER |  |
| 2.54 | PUC-2R-PF2.54-2P2.75/0.80-2.50 | 5.1 | 3.4 | 2.75 | 1 | 2.50 | PA9T Black | NWS#69-1 | FACT. ORDER |  |
| 2.54 | PUC-2R-PF2.54-2P4.35/1.0-5.08 | 5.2 | 6.5 | 4.35 | 1 | 5.08 | PA9T Black | NWS#70 | FACT. ORDER |  |
| 2.54 | PUC-2R-PF2.54-2P4.35/1.0-5.00 | 5 | 6.4 | 4.35 | 1 | 5.00 | LCP Black | NWS#70-1 | FACT. ORDER |  |
| 2.54 | PUC-2R-PF2.54-2P4.0/1.0-5.00 | 4 | 7 | 4 | 1 | 5.00 | PA9T Black | NWS#71 | FACT. ORDER |  |
| 2.54 | PUC-2R-PF2.54-2P4.0/1.0-5.00 | 4.8 | 7 | 4 | 1 | 5.00 | PA9T Black | NWS#72 | FACT. ORDER |  |
| 2.54 | PUC-2R-PF2.54-2P4.0/1.0-5.00 | 5.8 | 7 | 4 | 1 | 5.00 | PA9T Black | NWS#73 | FACT. ORDER |  |
| 2.54 | PUC-2R-PF2.54-2P4.0/1.0-5.00 | 8.3 | 7 | 4 | 1 | 5.00 | NL6T | NWS#74 | FACT. ORDER |  |
| 2.54 | PUC-2R-BOX2.54-Notch-4P6.5/1.0-0.64 | 10 | 9 | 6.5 | 1 | 0.64 | NL6T/NL9T | NWS#75 | FACT. ORDER |  |
| 2.54 | PUC-2R-BOX2.54-Fool-Proof-4P6.5/1.0-0.64 | 10 | 11.1 | 6.5 | 1 | 0.64 | NL6T/NL9T | NWS#76 | FACT. ORDER |  |
| 2.54 | PUC-2R-BOX2.54-4P5.5/1.0-0.64 | 10 | 9 | 5.5 | 1 | 0.64 | NL6T/NL9T | NWS#77 | FACT. ORDER |  |
| 2.54 | PUC-2R-BOX2.54-Heightened-Fool-Proof-4P7.4/1.0-0.64 | 10 | 9 | 7.4 | 1 | 0.64 | NL6T/NL9T | NWS#77-1 | FACT. ORDER |  |
| 2.54 | PUC-2R-4P7.4/1.0-0.64 | 10 | 9 | 7.4 | 1 | 0.64 | NL6T/NL9T | NWS#77-2 | STOCK |  |
| 2.54 | PUC-2R-BOX2.54-4P6.9/1.0-0.64 | 16 | 8.8 | 6.9 | 1 | 0.64 | NL6T/NL9T | NWS#78 | FACT. ORDER | COMING |
| 3.96 | PUC-1R-PH3.96-2P6.90/1.0-1.14 | 10 | 5 | 6.9 | 1 | 1.14 | PA9T Black | NWS#79 | FACT. ORDER | COMING |
| 3.96 | PUC-1R-3.96-Side-CAP-2*4P5.0/1.0-3.20 | 10 | 6.3 | 5 | 1 | 1.2*3.20 | PA9T Black | NWS#79-1 | FACT. ORDER |  |
| 2.54 | PUC-1R-PH2.54-Keyway-2P6.9/1.0-0.64 | 10 | 5 | 6.9 | 1 | 0.64 | PA9T White& PA9T Black & PA9T Halogen-Free& LCP Black | NWS#79-1 | FACT. ORDER | |
| 2.0 | 8.5 | 8 | 4.5 | 1 | 0.50 | NL6T | NWS#80 | FACT. ORDER | COMING | |
| 2.0 | PUC-2R-PH2.0-3P2.91/1.0-0.50 | 15 | 10 | 2.91 | 1 | 0.50 | LCP | NWS#80-1 | FACT. ORDER |  |
| 2.0 | PUC-2R-PF2.00-2P4.5/1.0-4.00 | 8.5 | 8.5 | 4.5 | 1 | 4.00 | PA9T Black | NWS#80-2 | FACT. ORDER |  |
| 2.0 | PUC-1R-PH2.0-2P4.5/1.0-0.50 | 3 | 4 | 4.5 | 1 | 0.50 | PA9T Black | NWS#81 | FACT. ORDER |  |
| 2.54 | PUC-2R-PF2.54-2P4.4/1.0-5.0 | 5 | 6.5 | 4.4 | 0.8 | 5.00 | PA9T Black | NWS#82 | FACT. ORDER |  |
| 1.27 | 7 | 4.9 | 2.7 | 1 | 1.00 | NL6T | NWS#83 | FACT. ORDER | COMING | |
| 2.54 | PUC-1R-PH2.54-2P2.6/1.0-0.64 | 5 | 4 | 2.6 | 1 | 0.64 | LCP | NWS#84 | FACT. ORDER |  |
| 2.0 | PUC-1R-PH2.0x1.5-Side-Cap-2P1.7/1.0-1.50 | 7 | 6 | 1.7 | 1 | 1.50 | NL9T/LCP | NWS#85 | FACT. ORDER |  |
| 2.0 | PUC-1R-PH2.0x1.5-Side-Cap-2P1.7/1.0-1.48 | 7 | 6 | 1.7 | 1 | 1.48 | NL9T/LCP | NWS#85-1 | FACT. ORDER |  |
| 2.0 | PUC-1R-PH2.0x1.5-Side-Cap-2P1.7/1.0-1.46 | 7 | 6 | 1.7 | 1 | 1.46 | NL9T | NWS#85-2 | FACT. ORDER |  |
| 2.0 | 7 | 6 | 1.7 | 0.9 | 1.70 | NL6T | NWS#86 | FACT. ORDER | COMING | |
| 2.0 | PUC-1R-PH2.0-Side-Cap-2P2.9/0.90-1.95 | 7 | 5 | 2.9 | 0.9 | 1.95 | NL9T | NWS#86-1 | FACT. ORDER |  |
| 2.0 | PUC-1R-PH2.0-Side-Cap-2P2.9/0.90-1.95 (C-Chamfer) | 7 | 5 | 2.9 | 0.8 | 1.95 | NL9T | NWS#86-2 | FACT. ORDER |  |
| 1.27 | 7 | 4.8 | 2.7 | 0.8 | 1.00 | NL6T | NWS#87 | FACT. ORDER | COMING | |
| 1.27 | PUC-2R-PH1.27-Side-Cap-2*4P2.7/0.8-1.0 | 6.45 | 4.8 | 2.7 | 0.8 | 1.00 | PA9T Black | NWS#87-1 | FACT. ORDER | COMING |
| 1.27 | PUC-2R-PH1.27-Side-Cap-2*4P2.7/0.8-1.1 | 5 | 5 | 2.7 | 1 | 1.10 | PA9T Black | NWS#87-2 | FACT. ORDER |  |
| 2.0 | 7 | 8 | 1.7 | 1 | 1.70 | NL6T | NWS#88 | FACT. ORDER | COMING | |
| 2.0 | PUC-1R-PH2.0-2P4.5/0.9-0.50 | 5 | 3 | 4.5 | 1 | 0.50 | PA9T Black | NWS#89 | FACT. ORDER |  |
| 2.54 | PUC-2R-PH2.54-4P3.5/1.0-0.64 | 6 | 5 | 3.5 | 1 | 0.64 | PA6T | NWS#90 | FACT. ORDER |  |
| 4.2 | PUC-2R-PH4.20-2P4.50/1.0-1.14 | 9.6 | 7.6 | 4.5 | 1.2 | 1.14 | PA9T Black | NWS#91 | FACT. ORDER |  |
| 4.0 | PUC-1R-PH4.00-2P1.20/1.2-1.14 | 6.2 | 5.2 | 1.2 | 1 | 1.14 | PA9T Black | NWS#91-1 | FACT. ORDER |  |
| 2.54 | PUC-2R-PH2.54-4P5.5/1.0-0.64 | 7 | 5 | 5.5 | 0.7 | 0.64 | PA6T Black & PA6T White | NWS#92 | FACT. ORDER | COMING |
| 1.5 | PUC-2R-1.5-3P3.5/1.0-0.40 | 5 | 4 | 3.5 | 1.5 | 0.40 | PA9T | NWS#93 | STOCK |  |
| 3.0 | PUC-2R-PH3.00-3P6.90/1.5-0.64 | 9.9 | 5.9 | 6.9 | 1.5 | 0.64 | PA6T Black | NWS#94 | FACT. ORDER |  |
| 3.0 | PUC-2R-PH3.00-3P5.0/1.5-2.95 | 7.45 | 6.45 | 5 | 1 | 2.95 | PA9T Black | NWS#94-1 | FACT. ORDER |  |
| 2.54 | PUC-1R-WF2.54-2P4.0/1.0-0.70 | 5.05 | 6 | 4 | 1 | 0.70 | PA9T Black | NWS#95 | FACT. ORDER |  |
| 2.54 | PUC-1R-WF2.54-Notch-2P7/1.0-1.80 | 5.4 | 8.5 | 7 | 1 | 1.80 | PA9T Black& PA9T Original Nature Color | NWS#96 | FACT. ORDER |  |
| 1.0 | PUC-1R-WF1.00-2P4/1.0-2.90 | 4 | 4.3 | 4 | 1 | 2.9 | LCP Original Nature Color | NWS#97 | FACT. ORDER |  |
| 2.0 | PUC-1R-WF2.00-3P5/1.05-0.45 | 6 | 4.9 | 5 | 0.9 | 0.45 | PA9T Original Nature Color | NWS#98 | FACT. ORDER |  |
| 2.0 | PUC-1R-WF2.00-1P4.45/0.90-2.15 | 6 | 4 | 4.45 | 1 | 2.15 | PA9T Black | NWS#99 | FACT. ORDER |  |
| 2.0 | PUC-1R-WF2.00-2P5.5/1.00-0.50 | 5 | 5.08 | 5.5 | 1 | 0.50 | PA9T Original Nature Color | NWS#100 | FACT. ORDER |  |
| 2.0 | PUC-1R-WF2.00-2P4.5/1.00-0.50 | 5 | 5.08 | 4.5 | 1 | 0.50 | PA9T Original Nature Color | NWS#101 | FACT. ORDER |  |
| 2.0 | PUC-1R-WF2.00-2P6.5/1.00-0.50 | 5 | 5.08 | 6.5 | 0.8 | 0.50 | PA9T Original Nature Color | NWS#102 | FACT. ORDER |  |
| 2.0 | PUC-1R-WF2.00-3P6.4/0.8-0.45 | 7.6 | 4.8 | 6.4 | 1 | 0.45 | PA9T Original Nature Color | NWS#103 | FACT. ORDER |  |
| 1.27 | PUC-1R-WF1.27-2P2.6/1.0-3.83 | 4.5 | 6.7 | 2.6 | 0.7 | 3.83 | LCP Black | NWS#104 | FACT. ORDER |  |
| 1.27 | PUC-1R-WF1.27-2P2.1/0.7-0.46 | 5 | 7.1 | 2.1 | 0.5 | 0.46 | PA4T Halogen-Free Balck | NWS#105 | FACT. ORDER |  |
| 2.0 | PUC-1R-WF2.00-3P2.6/0.5-0.42&0.76 | 8.25 | 5 | 2.6 | 1 | 0.42*0.76 | LCP Original Nature Color | NWS#106 | FACT. ORDER |  |
| 2.54 | PUC-2R-WF2.54-6P3.82/1.0-0.81&0.99 | 7.7 | 9.8 | 3.82 | 1 | 0.81*0.99 | PA4T Halogen-Free Black | NWS#107 | FACT. ORDER |  |
| 2.54 | PUC-2R-BTB-PH2.54-2P4.0/1.0-3.1 | 12 | 8 | 4 | 1 | 3.1 | PA9T Black | NWS#108 | FACT. ORDER |  |
| 2.0 | PUC-2R-BTB-PH2.00-2P3.5/1.0-2.5 | 12 | 7.5 | 3.5 | 1 | 2.50 | LCP Black | NWS#109 | FACT. ORDER |  |
| 2.0 | PUC-2R-BTB-PF2.00-2P3.75/1.0-5.00 | 12 | 7 | 3.75 | 0.65 | 5.00 | LCP Black | NWS#110 | FACT. ORDER |  |
| 2.0 | PUC-2R-PF2.00*6.30-2P1.00/0.65-0.50 | 6.35 | 3.9 | 1 | 0.65 | 0.50 | PA9T Black | NWS#111 | FACT. ORDER |  |
| 2.0 | PUC-3R-PH2.00-4P3.3/0.65-0.64 | 66.8 | 5.7 | 3.3 | 0.6 | 0.64 | PA9T Black | NWS#112 | FACT. ORDER |  |
| VF4PCAP | PUC-2R-VF4P-4P4.85/0.60-0.46 | 5.9 | 6 | 4.85 | 1.3 | 0.46 | LCP Black | NWS#113 | FACT. ORDER |  |
| 1759CAP | PUC-1R-PH1.27-1759-2P5.3/1.30-0.38~0.46 | 11 | 4.95 | 5.3 | 2.8 | 0.38~0.46 | PA9T Black | NWS#114 | FACT. ORDER |  |
| 805-4411S | PUC-805-4411S-2P5.95/2.8-1.35 | 9.6 | 5.2 | 5.95 | 1 | 1.35 | LCP Black | NWS#115 | FACT. ORDER |  |
| 5.08 | PUC-1R-PH5.08-3*2P5.3/1.0-1*4.4*6.9 | 16 | 6 | 5.3 | 1 | 1*4.4*6.9 | PA9T Black | NWS#116 | FACT. ORDER |  |
| 5.0 | PUC-1R-PH5.00-2P5.45/1.0-1.25 | 17 | 5 | 5.45 | - | 1.25 | LCP Black | NWS#117 | STOCK |  |
| Protect CAP | PROTECT-CAP-NWSGH0194-2.54X4PH1 | 10.16 | 2.3 | 7 | - | - | PBT | NWS#118 | FACT. ORDER | COMING |
| Protect CAP | PROTECT-CAP-NWSGH0195-2.54X5PH1 | 12.7 | 2.3 | 9.5 | - | - | PBT | NWS#119 | FACT. ORDER |  |
| Protect CAP | PROTECT-CAP-NWSGH0196-2.54X6PH1 | 15.2 | 2.3 | 6 | - | - | PBT | NWS#120 | FACT. ORDER |  |
| Protect CAP | PROTECT-CAP-NWSGH0197-2.54X8PH1 | 20.32 | 2.3 | 7 | 1 | - | PBT | NWS#121 | FACT. ORDER | COMING |
| Switch CAP | PUC-1R-Switch CAP-2P4.0/1.00-3.40 | 5.3 | 5.2 | 4 | 1.6 | 3.40 | PA9T Black | NWS#122 | FACT. ORDER |  |
| Switch CAP | PUC-1R-Switch CAP-1P5.65/1.60-WR6.5*9.0 | 29.2 | 11 | 5.65 | 1 | 6.5*9 | PA66 Black | NWS#123 | FACT. ORDER |  |
| Round Pin CAP | PUC-1R-Pin CAP-2P5.40/1.0-1.25 | 12 | 5 | 5.4 | 1 | 1.25 | LCP Black | NWS#124 | FACT. ORDER |  |
| Round Pin CAP | PUC-1R-Pin CAP-2P5.40/1.0-1.80 | 12.1 | 5 | 5.4 | 1 | 1.80 | LCP Black | NWS#125 | FACT. ORDER |  |
| Round Pin Side CAP | PUC-1R-Pin Side CAP-2P3.75/1.0-2.45 | 10 | 5.2 | 3.75 | 1 | 2.45 | PA9T Black | NWS#126 | FACT. ORDER |  |
| Metal Hardware CAP | PUC-1R-Metal Hardware CAP-S1P6.5/1.0-4.5*4.5 | 6.7 | 6.5 | 6.5 | 0.8 | 4.5*4.5 | PA6T Black | NWS#127 | FACT. ORDER |  |
| Metal Hardware CAP | PUC-1R-Metal Hardware CAP-2P6.15/0.8-1.80 | 10 | 7 | 6.15 | 0.2 | 1.80 | PA6T Black | NWS#128 | FACT. ORDER |  |

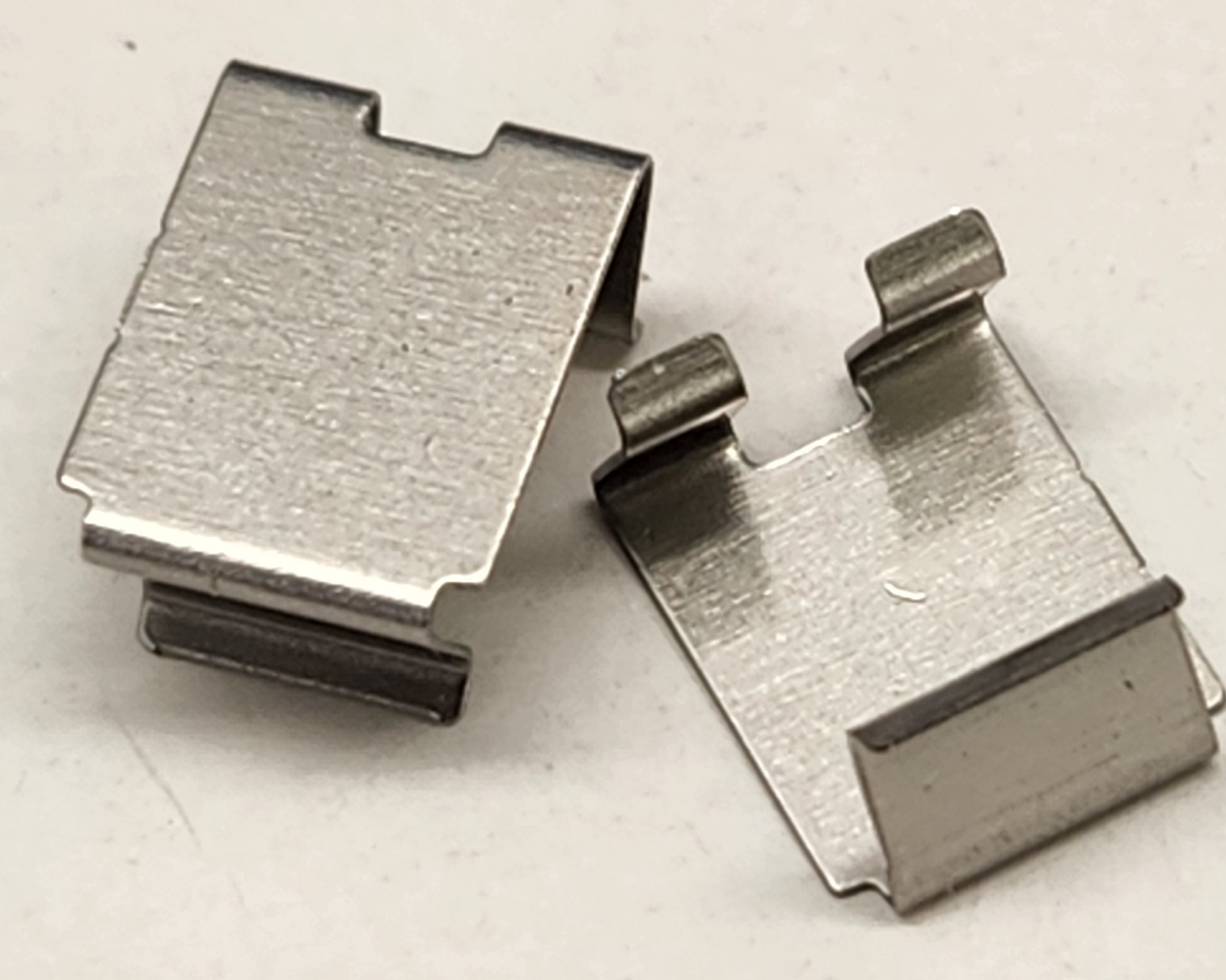

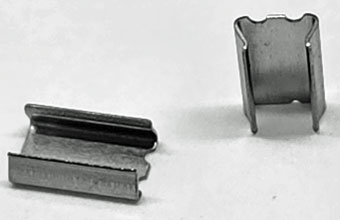

| Metal HeadCap | MHC-L6.55XW6.70XH4.39-W1-3.1 | 6.55 | 6.7 | 4.39 | 0.2 | 3.1 | SUS | NWS#129 | STOCK |  |
| Metal HeadCap | MHC-L6.70XW8.69XH4.39-W1-6.05 | 6.7 | 8.69 | 4.3 | 0.2 | 6.05 | SUS | NWS#130 | STOCK |  |
| Metal HeadCap | MHC-L6.70XW8.69XH4.39-W1-5.35 | 6.7 | 8.69 | 4.3 | 0.2 | 5.35 | SUS | NWS#131 | STOCK |  |
| Metal HeadCap | MHC-L16.6XW5.0XH3.6-W1-3.49 | 16.6 | 5 | 3.6 | 0.2 | 3.49 | SUS | NWS#132 | STOCK |  |
| Metal HeadCap | MHC-L16.6XW5.9XH4.3-W1-4.42 | 16.6 | 5.9 | 4.3 | 0.2 | 4.42 | SUS | NWS#133 | STOCK |  |
| Metal HeadCap | MHC-L6.2XW9.6XH4.1-W1-6.3 | 6.2 | 9.6 | 4.11 | 0.2 | 6.3 | SUS | NWS#134 | STOCK |  |
| Metal HeadCap | MHC-L6.6XW8.8XH4.3-W1-6.25 | 6.6 | 8.8 | 4.32 | 0.2 | 6.25 | SUS | NWS#135 | STOCK |  |
| Metal HeadCap | MHC-L6.6XW3.8XH2.0-W1-2.44 | 6 | 3.8 | 2 | 0.2 | 2.44 | SUS | NWS#136 | STOCK |  |
| Metal HeadCap | MHC-L7.65XW8XH3.5-W1-5.2(CW-5.72) | 7.65 | 8 | 3.5 | 0.2 | 5.2 | SUS | NWS#137 | FACT. ORDER |  |
| Metal HeadCap | MHC-L9.5XW5.2XH3.8-W1-3.2(CW-3.62) | 9.5 | 5.2 | 3.8 | 0.2 | 3.2 | SUS | NWS#138 | FACT. ORDER |  |
| Metal HeadCap | MHC-L10.4XW6.0XH2.75-W1-4.4(CW-4.8) | 10.4 | 6 | 2.75 | 0.2 | 4.4 | SUS | NWS#139 | FACT. ORDER |  |
| Metal HeadCap | MHC-L9.65XW5.25XH4.75-W1-3.3(CW-3.7) | 9.65 | 5.25 | 4.75 | 0.2 | 3.3 | SUS | NWS#140 | FACT. ORDER |  |
| Metal HeadCap | MHC-L9.2XW6.6XH4.05-W1-3.0(CW-3.3) | 9.2 | 6.6 | 4.05 | 0.2 | 3 | SUS | NWS#141 | FACT. ORDER |  |
| Metal HeadCap | MHC-L9.8XW10.6XH4.25-W1-5.4(CW-6.12) | 9.8 | 10.6 | 4.25 | 0.2 | 5.4 | SUS | NWS#142 | FACT. ORDER |  |
| Metal HeadCap | MHC-L4XW6.2XH3.5-W1-4.85(CW-5.18) | 4 | 6.2 | 3.5 | 0.2 | 4.85 | SUS | NWS#143 | FACT. ORDER |  |
| Metal HeadCap | MHC-L15.2XW4.2XH3.0-W1-2.9(CW-3.25) | 15.2 | 4.2 | 3 | 0.2 | 2.9 | SUS | NWS#144 | FACT. ORDER |  |
| Metal HeadCap | MHC-L5.6XW4.2XH3.0-W1-2.9(CW-3.25) | 5.6 | 4.2 | 3 | 2.9 | SUS | NWS#145 | FACT. ORDER |  | |
| Metal HeadCap | MHC-L8XW7.4XH3.1-W1-5.2 | 8 | 7.4 | 3.1 | 0.2 | 5.2 | SUS | NWS#146 | FACT. ORDER |  |
| Metal HeadCap | MHC-L8XW7.4XH3.1-W1-5.2 | 8 | 7.4 | 3.1 | 0.2 | 4.97 | SUS | NWS#146-1 | FACT. ORDER | |
| Metal HeadCap | MHC-L8XW7.4XH3.1-W1-5.2 | 8 | 7.4 | 3.1 | 0.2 | 4.8 | SUS | NWS#146-2 | FACT. ORDER | |
| Metal HeadCap | MHC-L8XW7.4XH3.1-W1-5.2 | 8 | 7.4 | 3.1 | 4.55 | SUS | NWS#146-3 | FACT. ORDER | |
